dsh-mars-flight-deck · Mars Flight Deck

A skin for DeepSeek Harness (dsh): spaceflight black as the ground, cool blue for telemetry and borders, thruster orange for the primary action and Nominal green only for success, with a full flight-deck hero on the new-session page.

What it changes

• A full set of semantic tokens: a spaceflight-black ground #05080d, deep blue consoles from the third panel level up, and exactly two borders — a cool blue rgba(142,181,203,.12) (the instrument hairlines) and an orange rgba(255,122,46,.14) (emphasis frames) — with #e8edf2 text. Around 80 --dsw-alias-* / --dsw-specific-* variables change at once.
• Cabin light: body::before lays down the prototype's two radials — cool blue along the top and thruster orange at the top right, so the dead-black ground feels like sitting in a cabin with the instruments lit. pointer-events: none keeps it from catching clicks.

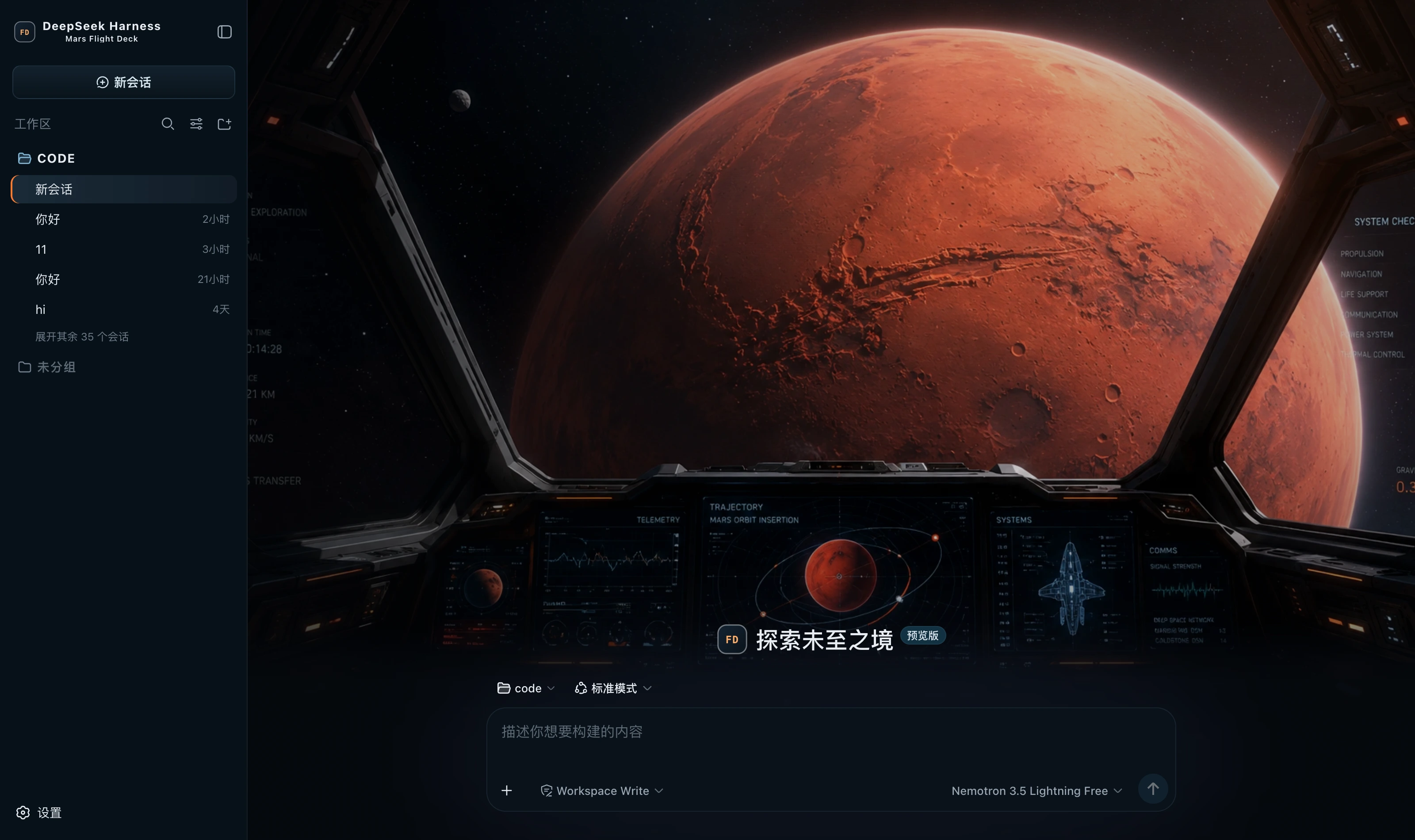

• A full-bleed cover on the new-session page: the viewport, Mars up close and the whole instrument row. The cover retracts once you enter the chat or trajectory pages.
• Brand mark takeover: both the sidebar and hero marks become an FD (Flight Deck) square, subtitled "Mars Flight Deck".
• Personified copy: thinking → Computing trajectory…; failure → Mission anomaly detected.; anything needing confirmation is prefixed with Command authorization required — the original text stays, since that is what you actually judge by.
• A right-hand status dock: always present; see the table below.

Palette rules

The prototype's theme rules state the ratio as a single figure, and it is this skin's hardest constraint:

80% spaceflight black and deep blue consoles, 10% cool blue telemetry, 6% thruster orange for interaction emphasis, 3% Nominal green for state and 1% red for anomalies

Colour	Value	Share	Used for
Spaceflight black / deep blue panels	#05080d → #142331	80%	Ground and the three panel levels
Cool blue telemetry	#7fb4d3	10%	Borders, secondary data and running
Thruster orange	#ff7a2e	6%	Interaction emphasis: the primary action and selected items
Nominal green	#73b89a	3%	Reserved for all nominal (the success state)
Red	#d9503f	1%	Reserved for anomalies

🔴 Orange and green must never trade places: orange is what you are about to do, green is what is already done. Confusing the two on a flight deck costs you the ability to tell at a glance whether to act. So the primary action, hover and selection all take orange, success always takes green, and neither ever borrows from the other.

🔴 Cool blue is never a solid button: here it is the language of telemetry and borders, and spreading it across large areas flattens the instrument panel's layering.

One more line is equally binding: New Mission uses the full flight-deck scene, while Console / Flight Path return to a low-distraction engineering interface. So the cover is drawn on the hero only, leaving the three-column layout and its information density untouched.

What the status dock shows

Card	Fields	Source
Waiting on you	Tools awaiting approval, questions awaiting an answer	ConversationSnapshot.pending. Appears only when something is genuinely waiting
Current Session	State, elapsed turn time, current tool duration, inbox, model	running / turnTimings / runningCalls / queue; the model comes from the latest assistant message's provenance.model
Context	Occupancy %, token load, and the System / tool-schema / conversation composition bar	The contextPressure and contextBreakdown projections
Permission	The active permission and sandbox mode	The permissions projection
Usage	Input / output / cache hits / time spent / turns	The tokenUsage and sessionStats projections
Plan	Todo progress	The todos projection (the card is absent when there is no list)
SYSTEM OPS	Tool name · real duration · outcome	Trajectory tool-result nodes (duration = time - callTime) plus the snapshot's runningCalls. Appears only once a call has happened
CONTEXT UPLINK	The source and form of each context injection	Trajectory context nodes (provenance.label / form)
COMPACTED	Compaction count, items and tokens folded	Trajectory compaction nodes. Absent when nothing was compacted

⚠️ A tool duration may be absent: it can only be computed while the matching tool/call is still inside the session window. Older calls that scrolled past report only name and outcome — better blank than an invented figure.

⚠️ Composition is not a total: the three contextBreakdown figures use fixed-density estimates (systematically low for Chinese and JSON schema) and do not add up to the token load, which is anchored to the provider's reported value. The UI says so too.

Deliberately not done

The five PROP / NAV / LSS / COM / PWR — ONLINE rows under Systems in the prototype's right column, the 54,621 KM / 2.56 KM/S / 0.38 G under Telemetry, the static shortcut table, the "Compute Load 71%" at the foot of the sidebar and the "ALL SYSTEMS NOMINAL" in the cover's top-right corner all have no matching projection in the harness.

Decoration is fine; fake state is not — especially in this skin. A systems panel permanently reading NOMINAL is exactly the most misleading thing possible in a flight-deck context, and the real numbers beside it get doubted along with it. So the right column keeps only cards backed by real data.

The four mission presets on the hero (Analyze orbital trajectory / Inspect system anomaly…) are not built either: they are hardcoded copy in the draft, whereas the harness's suggestions come from session context, and hardcoding a set would only ever produce the same four lines.

Install

Skin market (recommended): find it in the market and install, then restart dsh.

Manual install (during development):

npm install && npm run build
DST=~/.dsh/profiles/web/node_modules/dsh-mars-flight-deck
mkdir -p "$DST" && cp -R lib cordis.patch.yml skin.json package.json README.md "$DST/"
# then add dsh-mars-flight-deck to the profile package.json's dependencies and dsh.profile.bundles

After changing it you must restart dsh: the profile tree has to be recomposed, and without a restart the UI stays as it was.

🔴 The side effect of autoApply

Installing switches to this skin by default (autoApply, default true). The reason is that the harness does not persist third-party theme ids, and the built-in Settings → Appearance has only three cells: light / dark / follow system, with no third-party themes — switching manually requires the skin market's own panel (Settings → Skin Market).

The cost: it reapplies on every refresh, so switching away lasts only for that session. To change permanently, set autoApply to false or uninstall the plugin. It is implemented as an 8-second window after startup (long enough to outlast the Host preference snapshot), after which it lets go entirely.

Version requirements

Requires dsh 0.1.1-rc.2 or newer. The brand-slot takeover relies on slot priority shadowing (only equal priorities count as a conflict; different priorities shadow, and the lower number renders). On older versions these three registrations throw and are swallowed, merely falling back to the official brand mark, while the palette and cover keep working.

Assets

The cover is the clean illustration from the prototype (1536×1024), cropped to 1423×1024 at the hero's aspect ratio and encoded at cwebp q95 in native resolution — the instrument hairlines and the crater texture on Mars cannot survive downscaling.

Development

npm run check   # tsc --noEmit
npm run build   # produces lib/index.js (host half) and lib/client.js (browser half)

lib/ must be committed: skins install via github:owner/repo, which installs the build output from the repository; if the source moves and the output does not, people install the old version (and the market uninstalls the package outright over the missing entry file).

License

MIT © Science Roam Limited
